Compact single-module studio
Low complexity
Single level
|
One 20-foot standard-height container |
Approximately 6.06 m × 2.44 m
Approximately 19.88 ft × 8 ft |
Approximately 14.8 m²
Approximately 159 ft² before insulation and interior finishes |
Use one limited side opening or a door-and-window arrangement between corner posts.
Retain corner posts, top rails, and bottom rails wherever possible.
Frame larger openings with engineered steel members.
|
Keep the module supported at its four corner load points or on a specifically designed continuous foundation.
Avoid transferring concentrated roof or upper-floor loads through unreinforced side sheets.
|
Foundation bearing and anchorage; wind uplift; local snow load; corrosion condition;
fire separation; emergency escape; thermal bridging; ventilation; minimum ceiling height;
and local residential occupancy requirements.
|
Guest accommodation, remote office, compact accessory dwelling, or short-term living space where local planning rules permit. |
|
Long-wall panoramic living module
Open plan
High glazing
|
One 40-foot standard-height container |
Approximately 12.19 m × 2.44 m
Approximately 40 ft × 8 ft |
Approximately 29.7 m²
Approximately 320 ft² before interior build-up |
A long side-wall opening should be divided into engineered bays.
Preserve corner posts and provide a designed header, jambs, sill beam, and positive connection to the remaining frame.
Do not treat corrugated side sheeting as a substitute for a structural wall after removal.
|
Provide a continuous load path from roof and floor framing to corner supports and foundations.
Check lateral stability because a large side opening can substantially reduce the original box action.
|
Wind pressure and racking; diaphragm behavior; header deflection; connection design;
glazing safety; thermal movement; fire-resistance ratings; and local energy-code requirements.
|
Single-level living room and kitchen layouts, especially on sites with controlled wind exposure and favorable views. |
|
Side-by-side two-module residence
Two containers
Wide plan
|
Two 40-foot standard-height containers placed parallel |
Approximately 12.19 m × 4.88 m
Approximately 40 ft × 16 ft |
Approximately 59.5 m²
Approximately 640 ft² before insulation and interior finishes |
Create a central connection using repeated framed openings rather than one uncontrolled continuous cut.
Retain enough end-wall and corner-post material to maintain stability.
Use independent beams or a designed transfer frame where the central wall is removed extensively.
|
Connect the modules for diaphragm action only when the engineer verifies the connection.
Otherwise, design each container as a stable structural unit with a separate roof or floor system.
|
Differential movement; foundation settlement; torsion; roof drainage; fire separation between dwelling zones;
air sealing at the inter-module joint; and required structural resistance for local wind, snow, and seismic actions.
|
Family-scale single-story homes with separate bedroom and living zones or an accessible open-plan arrangement. |
|
Courtyard or U-shaped composition
Three modules
Outdoor court
|
Three 40-foot containers arranged around a partially enclosed courtyard |
Typical arrangement: approximately 12.19 m × 7.32 m overall, excluding the courtyard variation |
Approximately 89.2 m² of gross container floor area
Approximately 960 ft² before interior build-up |
Prefer openings facing the courtyard while retaining end frames and corner posts.
Use smaller repeated openings where possible.
Design covered walkways and roof links as independent framed structures unless the connection has been engineered.
|
Each module should have a defined foundation bearing line.
Tie the arrangement together for wind and seismic actions only through engineered interconnections;
do not rely solely on welded sheet metal or thin cladding.
|
Re-entrant corner wind effects; rainwater drainage; courtyard fire access; diaphragm continuity;
foundation interaction; snow accumulation at roof junctions; and emergency egress from every sleeping area.
|
Warm or temperate climates where private outdoor space, cross-ventilation, and shaded circulation are priorities. |
|

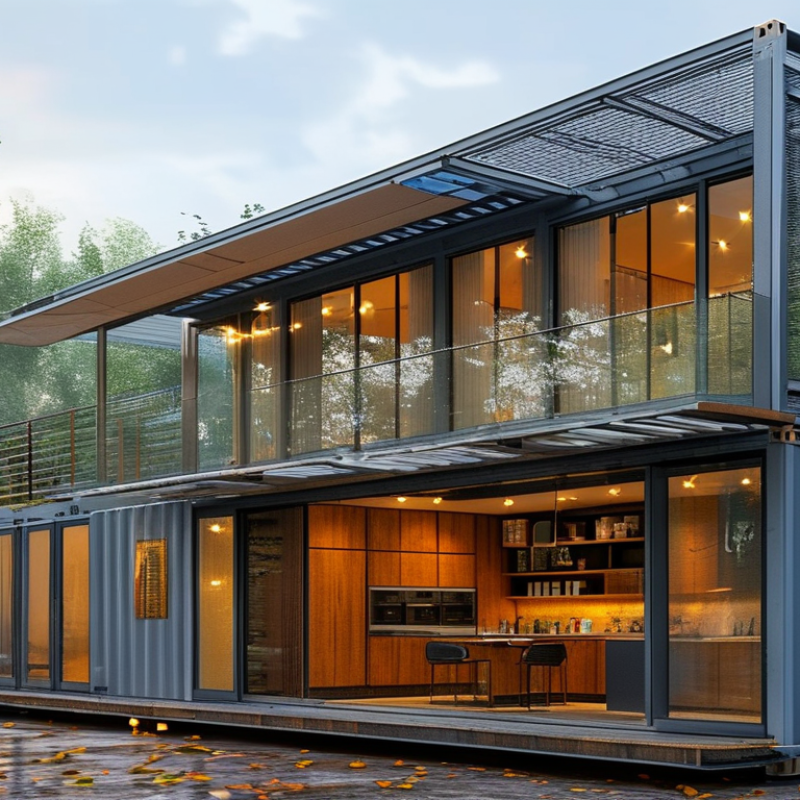

Two-story stacked residence
Vertical stacking
Small footprint
|
Four 40-foot containers, arranged as two containers per level |
Approximately 12.19 m × 4.88 m
Approximately 40 ft × 16 ft |
Approximately 119 m² total gross floor area
Approximately 1,280 ft² before interior build-up |
Align openings between levels where practical.
Avoid placing large openings directly above unsupported lower-level openings unless a transfer frame has been designed.
Protect stair openings with engineered perimeter framing.
|
Stack loads through verified corner posts or purpose-designed load-transfer members.
Provide positive vertical tie-down and lateral connections between levels.
Do not assume that container corner castings alone satisfy every building-code connection requirement.
|
Gravity load accumulation; column buckling; inter-story drift; stair and guard requirements;
fire-resistance and sprinkler provisions where required; wind overturning; seismic load path;
and foundation uplift and sliding.
|
Urban or narrow sites where preserving ground area is more important than keeping the building single-story. |
|
Offset upper-level terrace design
Four modules
Roof terrace
|
Four 40-foot containers with the upper level partially offset |
Lower level approximately 12.19 m × 4.88 m; upper-level offset varies by design |
Approximately 119 m² combined gross floor area, excluding terraces |
Keep major openings close to engineered frame lines.
Where the upper container does not sit over a lower container, use a designed transfer beam, column, or independent structural frame.
Detail terrace doors and parapets for water tightness and fall protection.
|
Design the offset as a conventional building frame rather than assuming direct container stacking.
Check eccentric reactions, torsion, cantilever effects, and uplift at the offset edge.
|
Transfer-frame strength and deflection; terrace live load; waterproofing; guard height;
drainage; wind uplift; snow drift; thermal expansion; and local planning limits on height and setbacks.
|
Sites requiring outdoor space and architectural variety while maintaining a relatively compact ground footprint. |
|
Hybrid container and framed infill home
Flexible geometry
Mixed structure
|
Two 40-foot containers plus a conventionally framed infill section |
Container width: approximately 4.88 m combined, plus the independently framed infill zone |
Common total range: approximately 75–105 m²
Approximately 807–1,130 ft², depending on the infill size |
Limit cutting to the container walls needed for doors, windows, and circulation.
Use the framed infill for kitchens, bathrooms, stairs, or large glazed areas.
Provide a deliberate movement joint or engineered connection between dissimilar structural systems.
|
Treat the containers and infill as separate structural systems unless a qualified engineer designs composite action.
Provide independent foundations or a verified shared foundation system.
|
Differential settlement; thermal movement; moisture control; fire stopping at interfaces;
structural separation; roof drainage; energy performance; and local provisions for mixed construction types.
|
Projects needing large rooms, accessible circulation, or conventional code-compliant service zones without excessive container cutting. |
|
Climate-buffered double-envelope design
Cold or hot climates
Energy focused
|
One or two containers enclosed by a separately supported roof and ventilated outer skin |
Container footprint remains approximately 6.06 m × 2.44 m or 12.19 m × 2.44 m; outer envelope is larger |
Interior area depends on the container configuration; the buffer zone is not normally counted as conditioned floor area |
Keep container wall modifications moderate.
Place large windows in the independent outer structure where possible.
Use carefully flashed penetrations and maintain a ventilated cavity behind the outer skin.
|
Support the outer roof and façade independently unless engineered otherwise.
Check snow drift, wind suction, fire spread through cavities, and access for inspection and maintenance.
|
Condensation control; vapor diffusion; thermal bridging; roof snow and wind loads;
fire blocking; ventilation; energy-code air leakage; and corrosion caused by trapped moisture.
|
Cold, hot, humid, or high-solar-load locations where passive shading and a robust moisture strategy are important. |
|
Accessible single-level arrangement
Step-free planning
Universal design
|
Two 20-foot containers plus a framed connector, or two 40-foot containers with a wide central zone |
Typical gross footprint: approximately 9.14 m × 4.88 m for two 20-foot modules plus connector; final dimensions vary |
Approximately 44–60 m²
Approximately 474–646 ft² before interior build-up |
Use engineered openings for wide doors and connecting passages.
Keep thresholds low, provide adequate maneuvering clearances, and reserve structural wall segments at corners and supports.
|
Keep the floor system close to grade where flood risk permits.
If raised, design ramps, stairs, hold-downs, and lateral bracing as part of the primary structural system.
|
Accessible route requirements; bathroom clearances; door widths; ramp slope;
flood elevation; foundation anchorage; floor vibration; fire egress; and local residential code requirements.
|
Accessible dwellings, aging-in-place homes, small clinics, or compact accommodation with limited level changes. |
|
High-wind or seismic-resilient compact cluster
Site-specific design
Enhanced connections
|
Two to six 20-foot or 40-foot containers connected by a designed steel or reinforced-concrete frame |
Determined by the site plan; typical module widths remain approximately 2.44 m each |
Approximately 30–180 m² depending on the number and length of modules |
Favor smaller, balanced openings on opposing walls.
Avoid concentrating openings in one elevation.
Use engineered moment frames, braced frames, or shear-wall systems where container walls no longer provide sufficient lateral resistance.
|
Design the full building for wind, seismic, sliding, overturning, uplift, and progressive load transfer.
Use positive mechanical hold-downs and verified welded or bolted connections.
|
Site-specific wind speed; seismic design category; soil classification; flood and scour;
foundation uplift; connection ductility; drift limits; corrosion protection; and local structural design standards.
|
Exposed coastal, mountainous, high-wind, or seismically active sites where container geometry alone is insufficient. |
|
Engineering note:
A shipping container is manufactured and transported under the applicable international container safety framework, but conversion into a permanent residence is normally governed by the adopted local building, structural, fire, energy, accessibility, and planning codes. Cutting side walls, removing corner posts, adding floors, or stacking modules can invalidate the original load path unless the altered structure is re-engineered.
|
